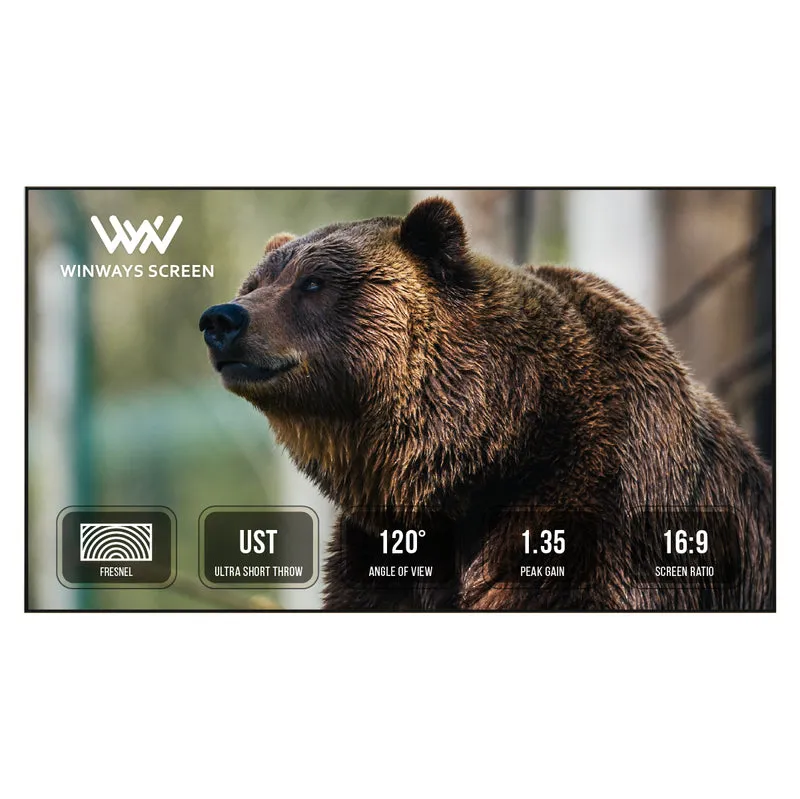

Winways UST Throw ALR Solid Panel Fresnel Screen

Key Features:

• Fully adapted to various UST projector
• 110% Ultra-wide color gamut

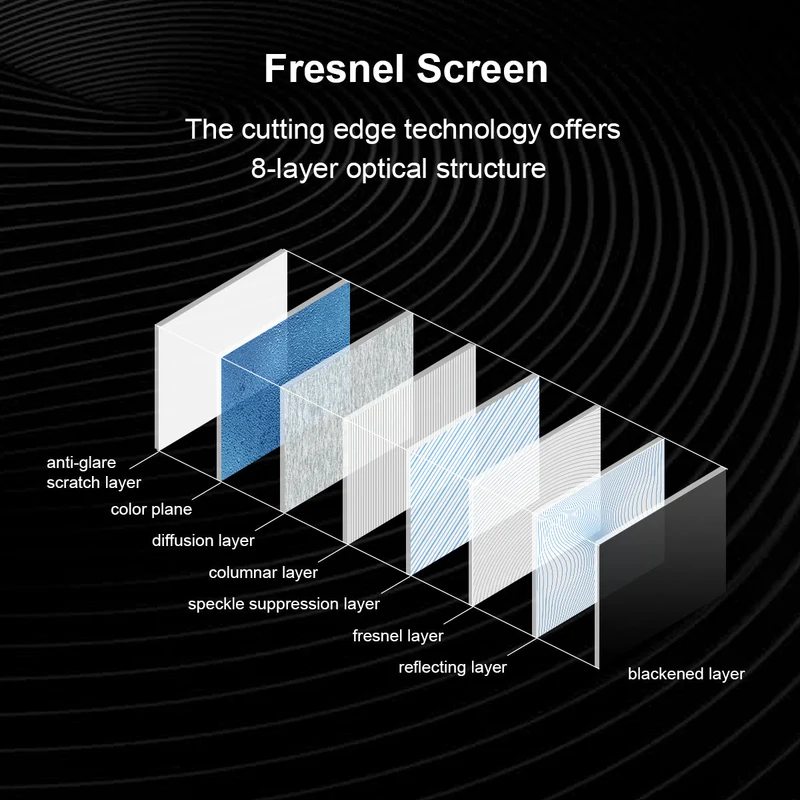

• Only 0.7mm Ultra-thin optical film but with 8 layers optical structure
• Anti-glare scratch layer
• Color plane
• Diffusion layer
• Columnar lens layer
• Speckle suppression layer

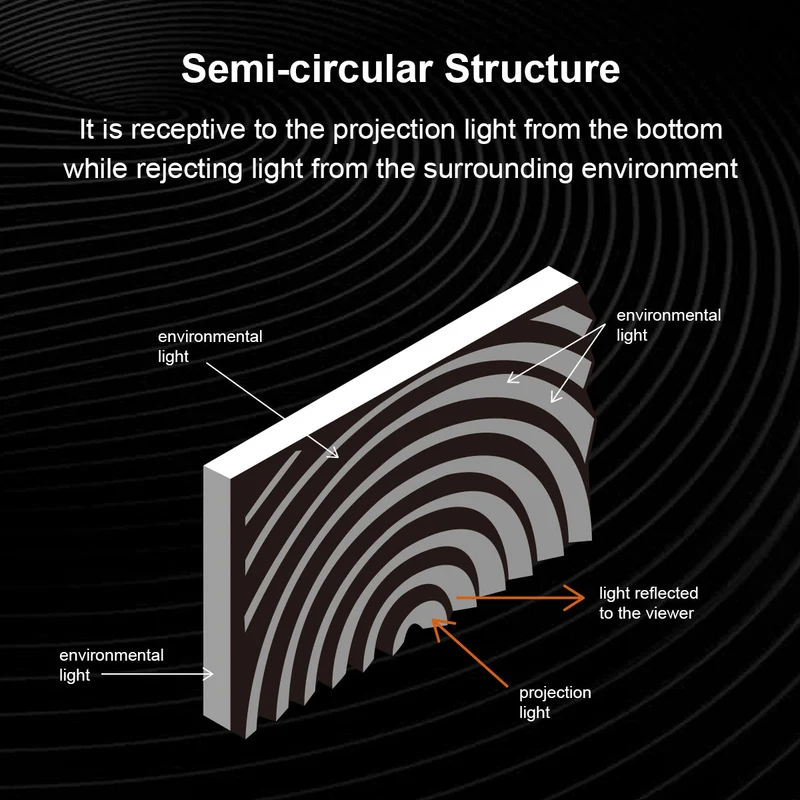

• Fresnel lens layer
• Reflecting layer
• Blackebed layer
• Support UST Projectors which throw ratio between 0.15-0.27, this screen is not suitable for long focal projectors
• Support Projector Installation Method: orthographic projection or ceiling mounted projection

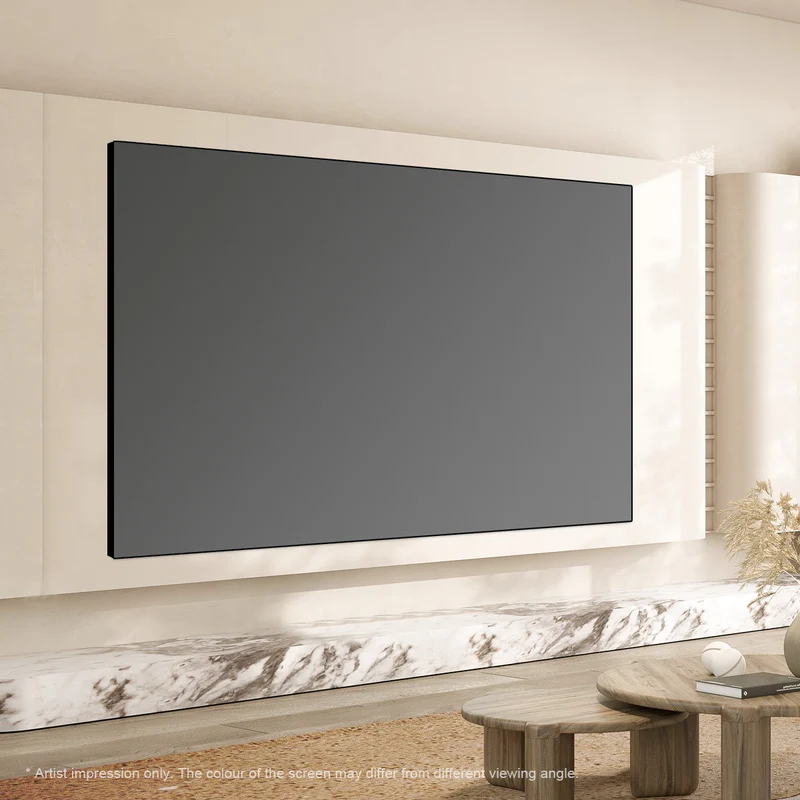

• Screen Installation Supported: Wall-mounted or Bracket fixed

Specifications:

• Screen Material: Polymer Resin & Structural Aluminum Plate
• Screen Type: Integrated Hard Screen (Can't fold)
• Screen Color: Dark Grey
• Screen Frame: Metal Black Frame & Bright Silver Border

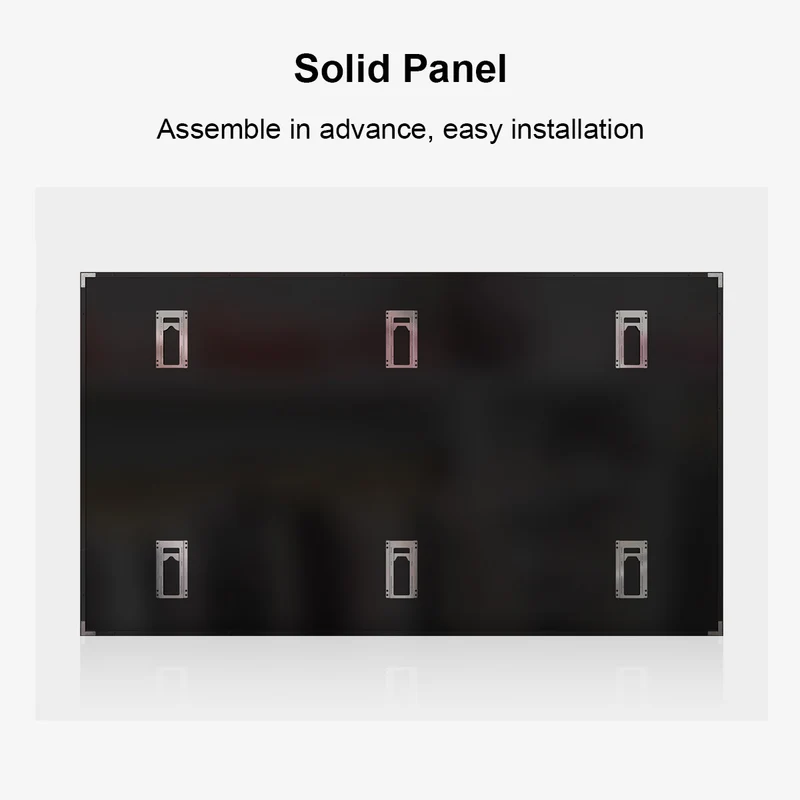

• Backboard Design: 6 Hooks
• ALR Rate ≥85%
• Peak Gain ≥1.6

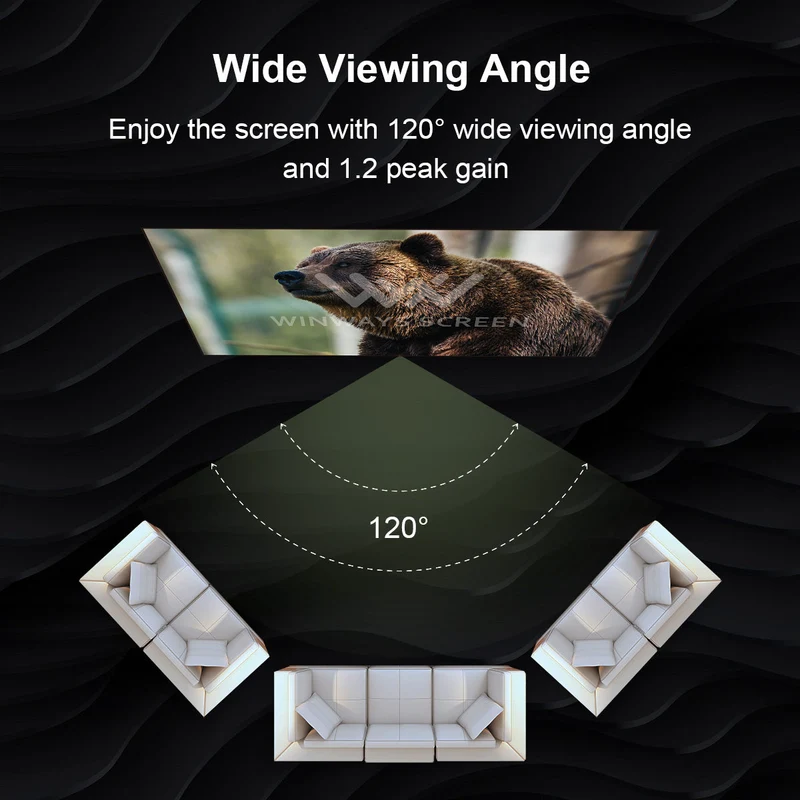

• Viewing Angle: 120°±5°

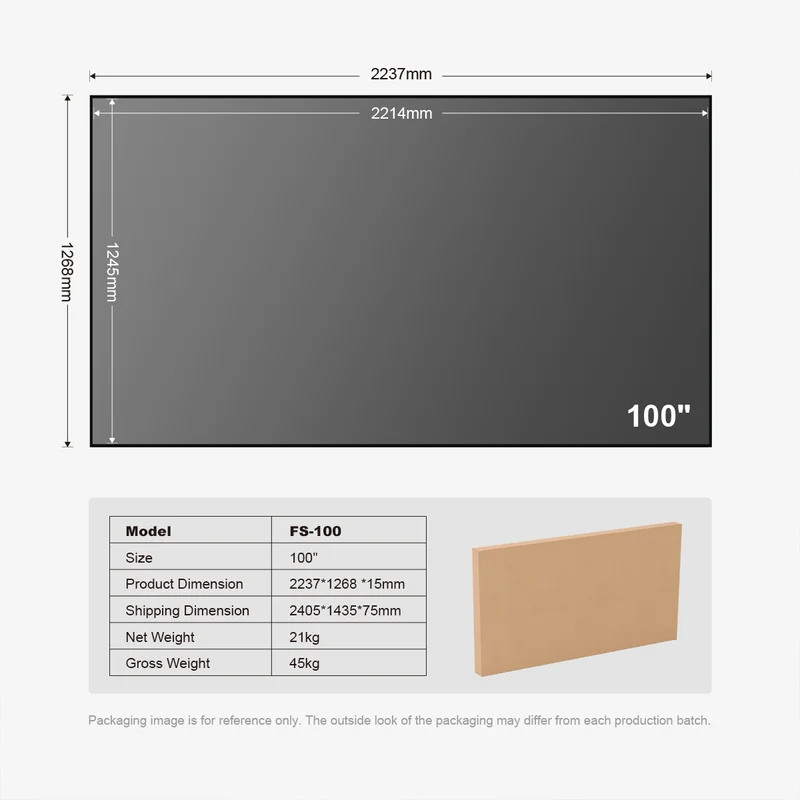

Package Dimension:

Size	Display Size(mm)	Installation Size(mm)	Packing Box Dimension(mm)	Net Weight(kg)	Gross Weight(kg)
120''	2675x1494	2680x1517x15	2680x1696x75	33	64
100''	2214x1245	2237x1268x15	2405x1435x75	21	45
90''	1993x1122	2015x1144x15	2185x1315x75	18	38

Warranty:

• Product Warranty: 1 Year
• Not intended or designed for commercial use

Notice: Please handle the screen with care during installation—avoid uneven force, follow the manual, and use two-person assistance to prevent membrane damage.
