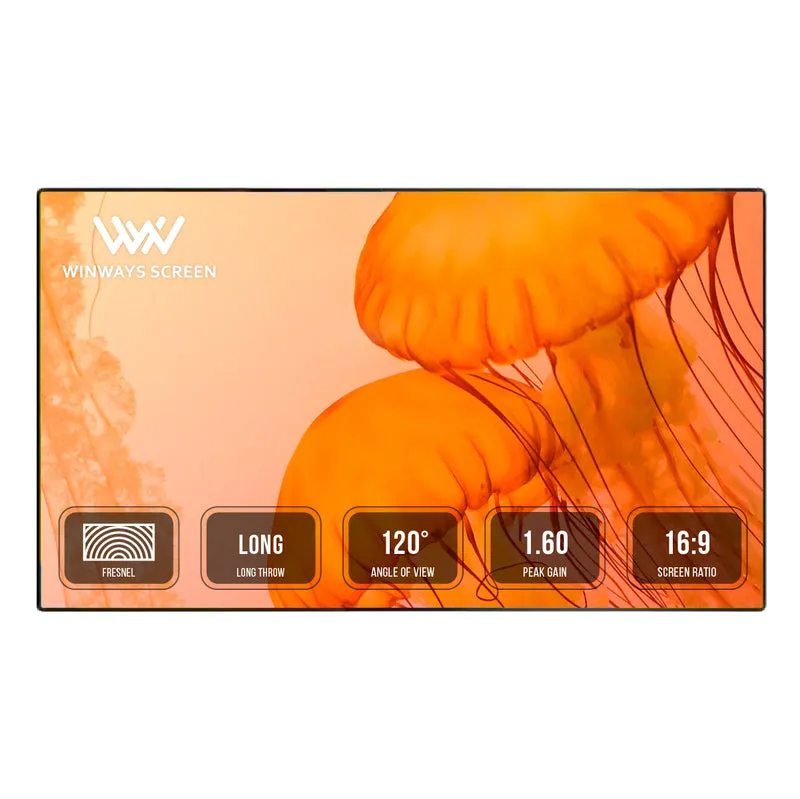

Winways Medium Throw ALR Rollable Fresnel Screen

Key Features:

• Fully adapted to various LT projector
• 110% Ultra-wide color gamut

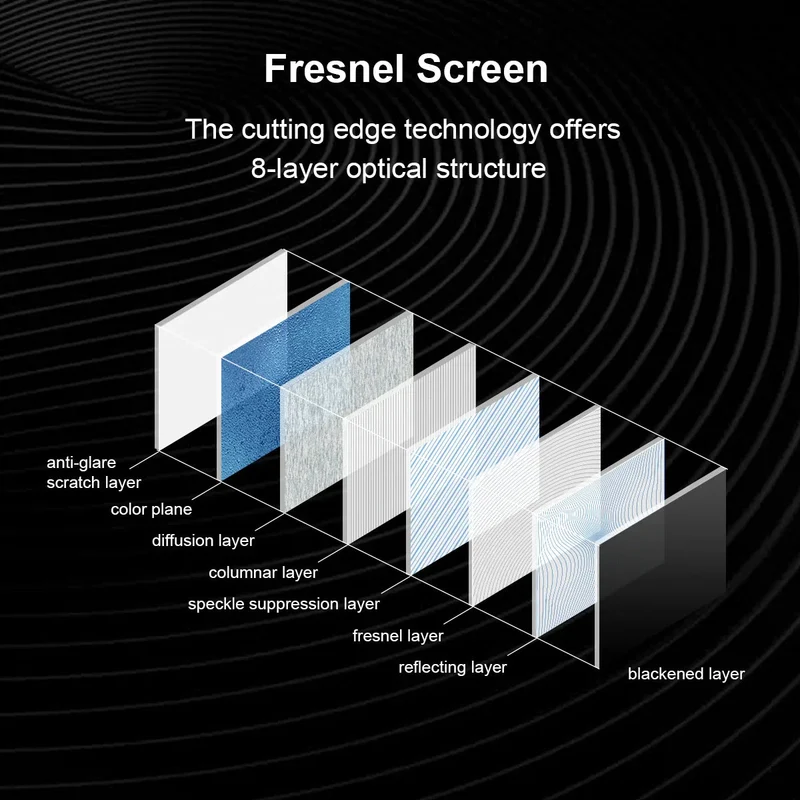

• Only 0.7mm Ultra-thin optical film but with 8 layers optical structure
• Anti-glare scratch layer
• Color plane
• Diffusion layer
• Columnar lens layer
• Speckle suppression layer

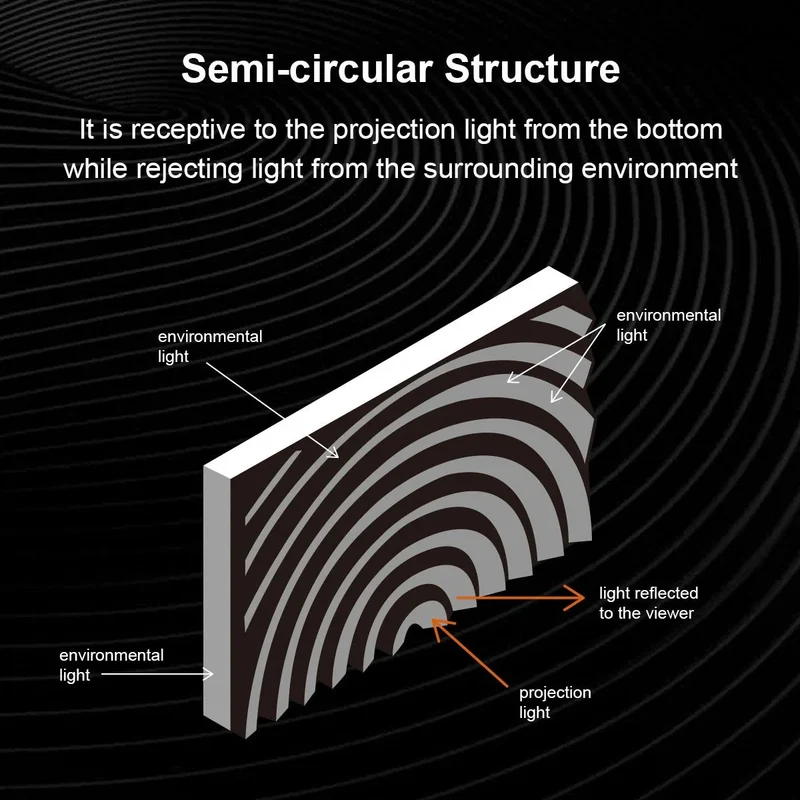

• Fresnel lens layer
• Reflecting layer
• Blackebed layer
• Magnetic adhesive, easy to installation
• Eco-friendly material, ten years quality assurance
• Projector Supported: throw ratio between 1.0-1.39, S1 series is not suitable for UST projectors
• Support Projector Installation Method: orthographic projection or ceiling mounted projection
• Screen Installation Supported: Wall-mounted

Specifications:

• Screen Material: Polymer Resin
• Screen Type: Integrated Flexible Screen
• Screen Color: Dark Grey
• Screen Frame: Printed Frame
• Backboard Design:Magnetic Adhesion
• ALR Rate ≥85%
• Peak Gain ≥1.6

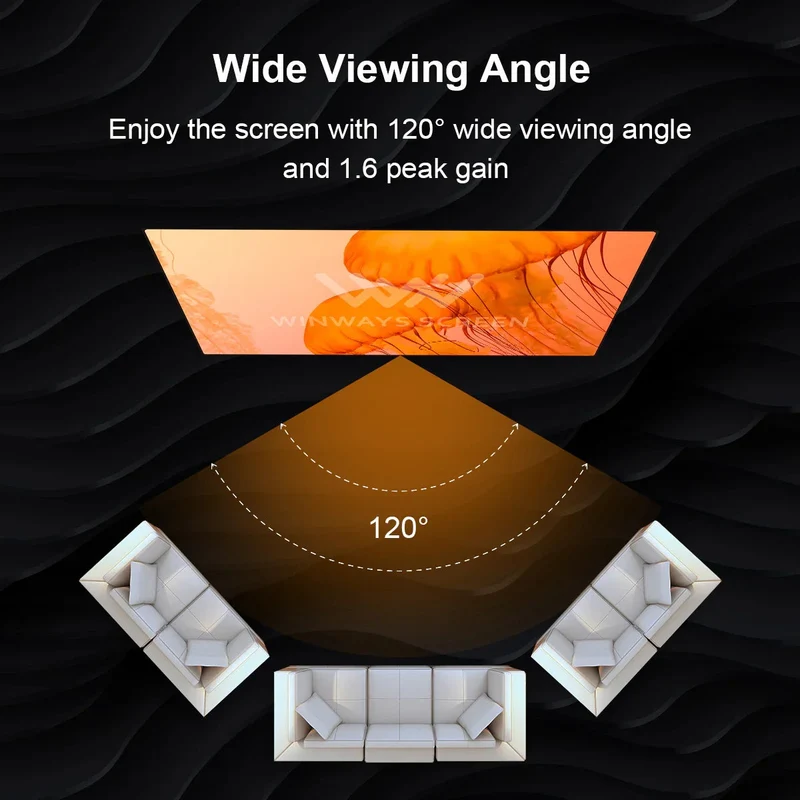

• Viewing Angle: 120°±5°

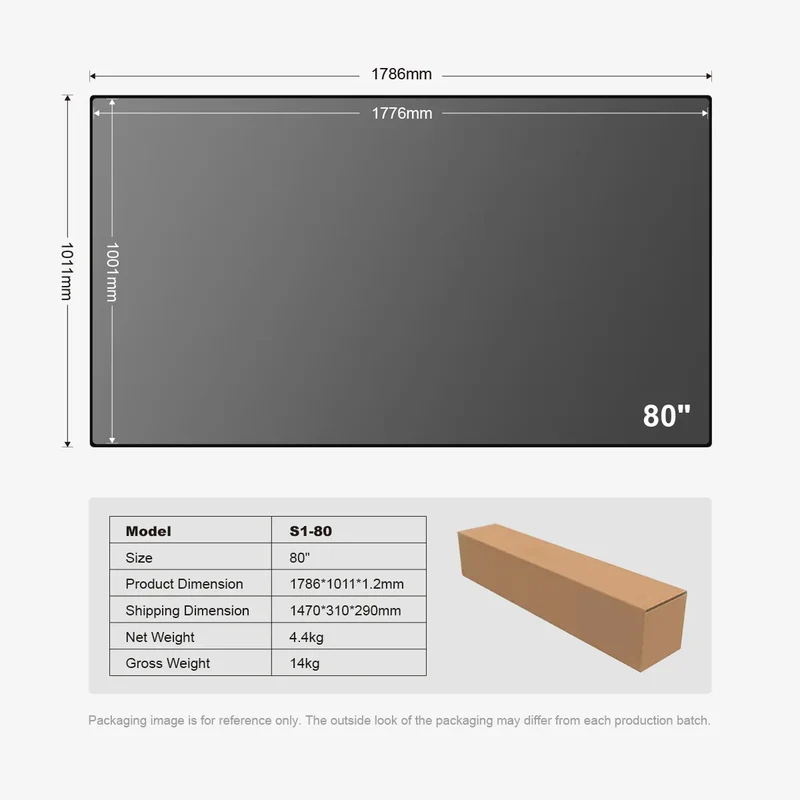

Package Dimension:

Size	Display Size(mm)	Installation Size(mm)	Packing Box Dimension(mm)	Net Weight(kg)	Gross Weight(kg)
100''	2214x1245	2224x1255x1.2	1470x310x290	6.9	17.50
88''	1948x1096	1958x1106x1.2	1470x310x290	5.4	15.10
80''	1776x1001	1797x1022x1.2	1470x310x290	5.4	14.00

Warranty:

• Product Warranty: 1 Year
• Not intended or designed for commercial use

Notice: Please handle the screen with care during installation—avoid uneven force, follow the manual, and use two-person assistance to prevent membrane damage.
